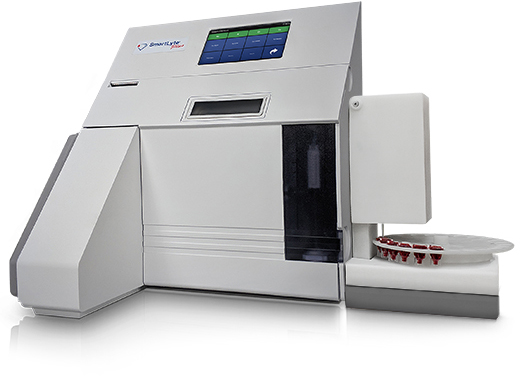

Diamond Diagnostics SmartLyte® Plus Electrolyte Analyzer

Diamond Smartlyte® Plus

The Most Advanced Electrolyte Analyzer

The Diamond Diagnostics SmartLyte® Plus Electrolyte Analyzer is a completely automated system measuring Na+, K+, Cl-, Ca++ and Li+ in whole blood, serum, plasma and urine utilizing Ion Selective Electrode (ISE) technology. The Diamond SmartLyte® Plus is uniquely designed with a powerful microprocessor allowing for easy interface with external LIS systems, operation with a new touch screen interface, bar code scanner and storage and retrieval of over 10,000 patient results. The system currently operates in over 12 languages and offers laboratories the option to utilize the analyzer for either human or veterinary applications.

Featured Benefits

  • 28 Sec Analysis
  • 512 Tests/Hour
  • 40,000 Results Stored
  • Touch Screen Display
  • Remote User Access
  • Online Service Interface

Fastest Results • Large Storage Capacity • Advanced Functionality



User InputData StorageConnectivity
5” Touch Screen10,000 Patient ResultsLAN, Wifi, 4 USB ports
Remote Access10,000 QC Results per LevelRS232, LIS
Analysis TimeSupportNumber of Parameters
28 sec (512/hour)Online Service Interface5 Total 4 (Simultaneously)
CalibrationSample SizeVeterinary Options
2 Point every 4 hoursWhole Blood, Serum (95 µl)Feline, Canine, Bovine,
1 Point every samplePlasma, QCs (95 µl)Equine, Swine, Ovine,
On DemandUrine (180 µl)Murine or Open
Languages
English, 中文, Español,日本語, 한국어, Português,
Français, Deutsch,Polskie, Русский, Türkçe
Indonesia, Italian, 日本語,

User Friendly Navigation

SmartLyte® Plus Electrolyte Analyzer with OnScreen DiagnosticsSmartLyte® Plus Electrolyte Analyzer with Onscreen KeyboardSmartLyte® Plus Electrolyte Analyzer Simple Search Function
Extensive Onscreen DiagnosticsSimple Search FunctionEasily Access Data and Results

Parameters and Specifications

ParametersRangeReproductibility*Resolution
Serum Na+40-200 mmol/LCV ≤ 1% (120-160 mol/L)0.1 mmol/L
Serum K+1.7-15 mmol/LCV ≤ 1.5% (2.5-6 mmol/L)0.01 mmol/L
Serum CL-50-200 mmol/LCV ≤ 1% (85-130 mmol/L)0.1 mmol/L
Serum Ca++0.3-5.0 mmol/LSD ≤ 0.02 mmol/L (0.8-1.5 mmol/L)0.001 mmol/L
Serum Li+0.2-5.5 mmol/LSD ≤ 0.03 mmol/L (0.4-1.3 mmol/L)0.001 mmol/L
Urine** Na+3-300 mmol/LCV ≤ 5% (100-250 mmol/L)0.1 mmol/L
Urine** K+5-120 mmol/L***CV ≤ 5% (10-60 mmol/L)0.01 mmol/L
Urine** CL-15-300 mmol/LCV ≤ 5% (100-250 mmol/L)0.1 mmol/L
*Typical Within Run (n=30) Blood, Serum, Plasma
**Calcium and Lithium are not typically measured in urine samples
***(60-120) requires additional dilution
PowerSize & WeightAmbient Conditions
100-240V ~ 50/60 Hz13.2 x 12.4 x 12 inRoom temperature:
(self adjusting)or 335 x 315 x 295 mm15-32°C/60-90°F
11.6 A max, 50 Watts max14 lbs or 6 kgsHumidity <85%
