Diamond ProLyte®
The World's Most popular Electrolyte Analyzer

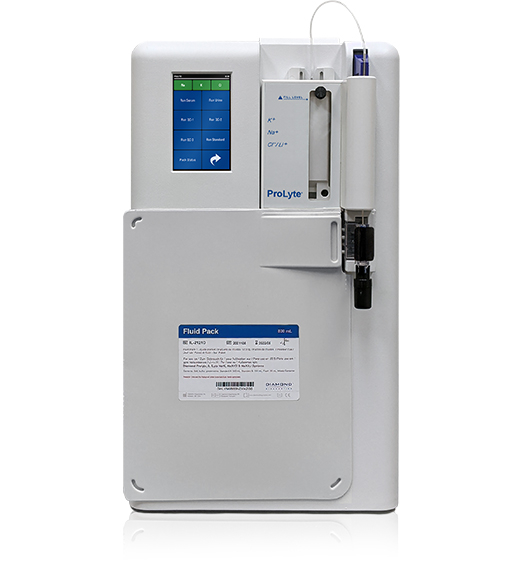

The Diamond Diagnostics ProLyte® Electrolyte Analyzer is a completely automated system measuring Na+, K+, Li+ and Cl- in whole blood, serum, plasma and urine utilizing Ion Selective Electrode (ISE) technology. The Diamond ProLyte® was uniquely designed with the user in mind. With the 4” touch screen display or USB keyboard, easily navigate menus, search patient results, run on-screen diagnostics and access data remotely.
Featured Benefits
- 45 Second Analysis
- 240 Tests/Hour
- Touch Screen Display
- Remote Access
- Online Service Interface
- 50,000+ Results Stored
Economical, Accurate and Easy to Maintain. Perfect for any size Lab.
~ Y. Patel, Pathologist
| Analysis Time | Support | Connectivity |
| 45 sec (240/hour) | Online Service Interface | LAN, Wifi, 4 USB ports, RS232, LIS |
| User Input | Calibration | Sample Size |
| 4” Touch Screen | 2 Point every 4 hours | Whole Blood, Serum (100 µl) |
| External Keyboard | 1 Point every sample | Plasma, QCs (100 µl) |
| Remote Access | On Demand | Urine (350 µl) |
| Number of Parameters | Data Storage | |
| Na+ K+ Cl- L+ | 10,000+ Patient Results | |
| 4 Total / 3 (Simultaneously) | 20,000+ QC Results per Level | |
| Languages | ||
| English, 中文, Español, | 日本語, 한국어, Português, | |
| Français, Deutsch, | Polskie, Русский, Türkçe | |
| Indonesia, Italian, 日本語, | ||
User Friendly Navigation | ||||||
 |  |  |  | |||
| Easy Access to Data/Results | One Touch Calibration | Simple Search Function | Onscreen System Diagnostics | |||
Parameters and Specifications | ||||||
| Parameters | Range | Reproductibility* | Resolution | |||
|---|---|---|---|---|---|---|
| Serum Na+ | 40-205 mmol/L | CV ≤ 1% (120-160 mol/L) | 0.01 mmol/L | |||
| Serum K+ | 1.5-15 mmol/L | CV ≤ 1.5% (2.5-6 mmol/L) | 0.01 mmol/L | |||
| Serum CL- | 45-205 mmol/L | CV ≤ 1% (85-130 mmol/L) | 0.01 mmol/L | |||
| Serum Li+ | 0.15-5.00 mmol/L | SD ≤ 0.03 mmol/L (0.4-1.3 mmol/L) | 0.001 mmol/L | |||
| Urine** Na+ | 30-1020 mmol/L | CV ≤ 5% (100-250 mmol/L) | 0.01 mmol/L | |||
| Urine** K+ | 20-505 mmol/L*** | CV ≤ 5% (10-60 mmol/L) | 0.01 mmol/L | |||
| Urine** CL- | 25-505 mmol/L | CV ≤ 5% (100-250 mmol/L) | 0.01 mmol/L | |||
| *Typical Within Run (n=30) Blood, Serum, Plasma | ||||||
| **Calcium and Lithium are not typically measured in urine samples | ||||||
| ***(60-120) requires additional dilution | ||||||
| Power | Size & Weight | Ambient Conditions |
| 100-240V ~ 50/60 Hz | 9.5” (24cm) W x 16.5” (42cm) | Room temperature: |
| (self adjusting) | 14 lbs or 6 kgs | 15-32°C/60-90°F |
| 1.6 A max, 50 Watts max | Humidity <85% | |
