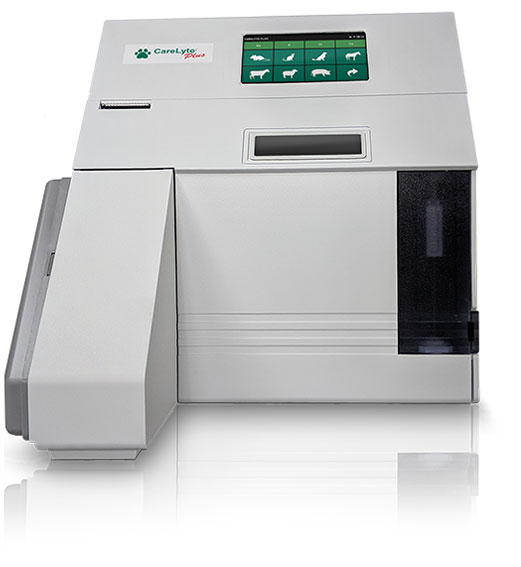

The CareLyte<sup>®</sup> Plus Electrolyte Analyzer

Diamond Carelyte® Plus

The Choice for Veterinary Laboratories

The Diamond Diagnostics CareLyte® Plus Electrolyte Analyzer for is a completely automated system measuring Na+, K+, Cl-, Ca++ and Li+ in whole blood, serum, plasma and urine utilizing Ion Selective Electrode (ISE) technology. The Diamond CareLyte® Plus is uniquely designed with a powerful microprocessor allowing for easy interface with external LIS systems, operation with a new touch screen interface, bar code scanner and storage and retrieval of over 10,000 patient results. The system currently operates in over 12 languages and offers testing on Feline, Canine, Bovine, Equine, Swine and Ovine samples. The perfect analyzer for any size Veterinary Laboratory.

Featured Benefits

  • 28 Sec Analysis
  • 512 Tests/Hour
  • 40,000 Results Stored
  • Touch Screen Display
  • Remote User Access
  • Online Service Interface

Fastest Results • Large Storage Capacity • Advanced Functionality



User InputData StorageConnectivity
5” Touch Screen10,000 Patient ResultsLAN, Wifi, 4 USB ports
Remote Access10,000 QC Results per LevelRS232, LIS
Analysis TimeSupportNumber of Parameters
28 sec (512/hour)Online Service Interface5 Total 4 (Simultaneously)
CalibrationSample SizeVeterinary Options
2 Point every 4 hoursWhole Blood, Serum (95 µl)Feline, Canine, Bovine,
1 Point every samplePlasma, QCs (95 µl)Equine, Swine, Ovine,
On DemandUrine (180 µl)Murine or Open
Languages
English, 中文, Español,日本語, 한국어, Português,
Français, Deutsch,Polskie, Русский, Türkçe
Indonesia, Italian, 日本語,

User Friendly Navigation

CareLyte<sup>®</sup> Plus Veterinary Diagnostics Menu NavigationCareLyte<sup>®</sup> Plus Veterinary Diagnostics Search ScreenCareLyte<sup>®</sup> Plus Veterinary Diagnostics Animal Results
User Friendly NavigationSimple Search FunctionEasily Access Data and Results

Parameters and Specifications

ParametersRangeReproductibility*Resolution
Serum Na+40-200 mmol/LCV ≤ 1% (120-160 mol/L)0.1 mmol/L
Serum K+1.7-15 mmol/LCV ≤ 1.5% (2.5-6 mmol/L)0.01 mmol/L
Serum CL-50-200 mmol/LCV ≤ 1% (85-130 mmol/L)0.1 mmol/L
Serum Ca++0.3-5.0 mmol/LSD ≤ 0.02 mmol/L (0.8-1.5 mmol/L)0.001 mmol/L
Serum Li+0.2-5.5 mmol/LSD ≤ 0.03 mmol/L (0.4-1.3 mmol/L)0.001 mmol/L
Urine** Na+3-300 mmol/LCV ≤ 5% (100-250 mmol/L)0.1 mmol/L
Urine** K+5-120 mmol/L***CV ≤ 5% (10-60 mmol/L)0.01 mmol/L
Urine** CL-15-300 mmol/LCV ≤ 5% (100-250 mmol/L)0.1 mmol/L
*Typical Within Run (n=30) Blood, Serum, Plasma
**Calcium and Lithium are not typically measured in urine samples
***(60-120) requires additional dilution
PowerSize & WeightAmbient Conditions
12VDC, 2.0A92 mm (H) x 134 mm (W) x 46 mm (D)Room temperature:
(self adjusting)or 335 x 315 x 295 mm15-32°C/60-90°F
3.70” (H) x 5.27” (W) x 1.81” (D)Humidity <85%

Literature

Unity Integrated Electrolyte System brochure
Brochure | CareLyte® Plus Veterinary Electrolyte Analyzer
Brochure | CareLyte® Plus 兽医电解质分析仪
Brochure | CareLyte® Plus Analyseur D'électrolytes Vétérinaire
Brochure | CareLyte® Plus Veterinär Elektrolyt Analysator
Brochure | CareLyte® Plus 수의 전해질 분석기
Brochure | CareLyte® Plus Analisador de Eletrólitos Veterinários
Brochure | CareLyte® Plus Analizador de Electrolitos Veterinario
Brochure | CareLyte® Plus Ветеринарный анализатор электролитов
