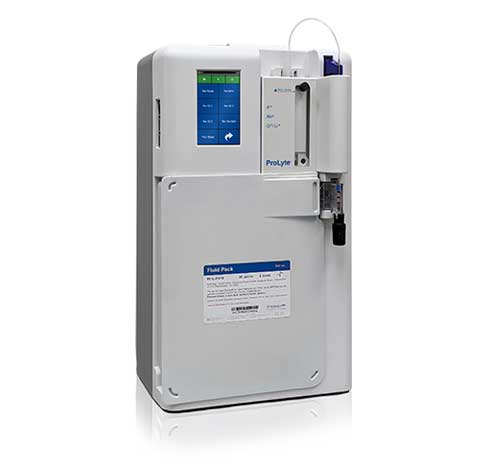

The Diamond ProLyte Electrolyte Analyzer is a completely automated system measuring Na+, K+, Cl- and Li+ and in whole blood, serum, plasma and urine utilizing Ion Selective Electrode (ISE) technology.
Package Size: EA
The Diamond Diagnostics ProLyte Electrolyte Analyzer is a completely automated system measuring Na+, K+, Cl- and Li+ in whole blood, serum, plasma and urine utilizing Ion Selective Electrode (ISE) technology. The Diamond ProLyte was uniquely designed with the user in mind. With the 4” touch screen display or USB keyboard, easily navigate menus, search patient results, run on-screen diagnostics and access data remotely. Additional benefits include 45 second analysis time, online support interface and storage of 50,000+ results.
4 Total Assays Tested
********(***), ************(***), *************(***), ******(******)
Manufacturer: | Diamond Diagnostics |
Private Labeled to Market: | Surelyte, Dialyte, Ionise 100, Trueline, TameLyte |
CLIA Complexity: | Moderate |
Sample Types: | Aqueous Standard Solutions, Dialysate, Plasma, Serum, Urine, Whole Blood |
Number of Assays: | 4 |
Maximum Throughput: | 80 tests/hour |
Sample Cycle Time: | 45 (sec) |
Sample Size Min: | 100uL μL |
Sample Input Type: | Sample Tubes Sample Cups Syringes |
Configuration: | Bench Top |
Height: | 42 cm (17 in) |
Width: | 24 cm (9 in) |
Depth: | 20 cm (8 in) |
Weight: | 5 kg (10 lb) |
Power Supply: | 110V-220V |
Point Of Care: | No |
SPECIFICATIONS:
Sample
Whole Blood, Serum, Plasma, or Urine
Sample Size
100 μl Whole Blood, Serum or Plasma
350 μl diluted (1:10) Urine
Detection Range
Blood Na+: 45-205 mmol/L
K+ : 1.5-15 mmol/L
Cl- : 45-205 mmol/L
Li+ : 0.15-5.0 mmol/L
Urine Na+: 30-1020 mmol/L
K+ : 20-505 mmol/L
Cl- : 25-505 mmol/L
Analysis Time
Whole Blood, Serum, Plasma, or Urine: 45 seconds
Data Storage
1000 patient results
500 Level 1 QC results
500 Level 2 QC results
500 Level 3 QC results
Calibration
Automatic or On Demand
1 Point after every Measurement
Reproducibility
Typical Within Run (n=30)
Blood, Serum, Plasma
Na+: CV ≤ 1% (115-160mmol/L)
K+ : CV ≤ 2% (2.5-6 mmol/L)
Cl- : CV ≤ 2% (65-120 mmol/L)
Li+ : SD ≤ 0.03 (0.25-2.0 mmol/L)
Urine
Na+: CV≤ 5% (60-280 mmol/L)
K+ : CV ≤ 5% (30-170 mmol/L)
Cl- : CV ≤ 5% (80-230 mmol/L)
User Input
Keypad, External Keyboard,
External Barcode Scanner (optional)
Output
Graphic backlit display
Graphic 40 column printer
RS232 LIS Serial Communication
AutoSampler port (Under Development)
Ambient Conditions
15-32°C (60-90°F), < 85% humidity
Languages
English, Spanish, French, German, Italian, Portuguese, Chinese, Russian
Power
100-240 ~ VAC 50/60 Hz, 1.6 A
Size & Weight
9.5” (24cm) W x 16.5” (42cm) H x8.0” (20cm) D,
10.5 lbs (4.5 Kg)
