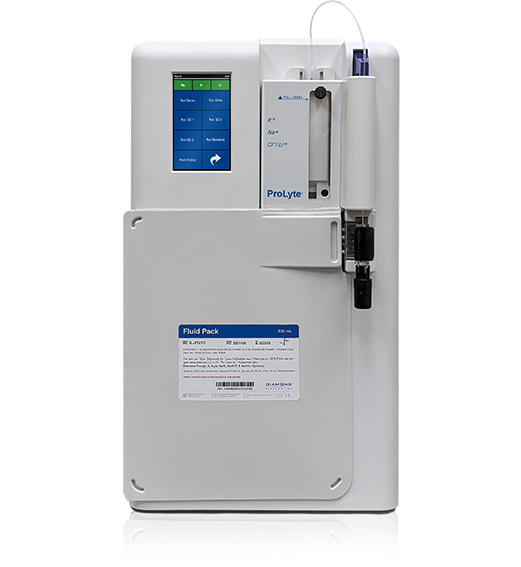

The Diamond Diagnostics ProLyte® Electrolyte Analyzer is a completely automated system measuring Na+, K+, Li+ and Cl- in whole blood, serum, plasma and urine utilizing Ion Selective Electrode (ISE) technology. The Diamond ProLyte® was uniquely designed with the user in mind. With the 4” touch screen display or USB keyboard, easily navigate menus, search patient results, run on-screen diagnostics and access data remotely.
Economical, Accurate and Easy to Maintain. Perfect for any size Lab.
Analysis Time | Support | Connectivity |
45 sec (240/hour) | Online Service Interface | LAN, Wifi, 4 USB ports, RS232, LIS |
User Input | Calibration | Sample Size |
4” Touch Screen | 2 Point every 4 hours | Whole Blood, Serum (100 µl) |
External Keyboard | 1 Point every sample | Plasma, QCs (100 µl) |
Remote Access | On Demand | Urine (350 µl) |
Number of Parameters | Data Storage | |
Na+ K+ Cl- L+ | 10,000+ Patient Results | |
4 Total / 3 (Simultaneously) | 20,000+ QC Results per Level | |
Languages | ||
English, 中文, Español, | 日本語, 한국어, Português, | |
Français, Deutsch, | Polskie, Русский, Türkçe | |
Indonesia, Italian, 日本語, | ||

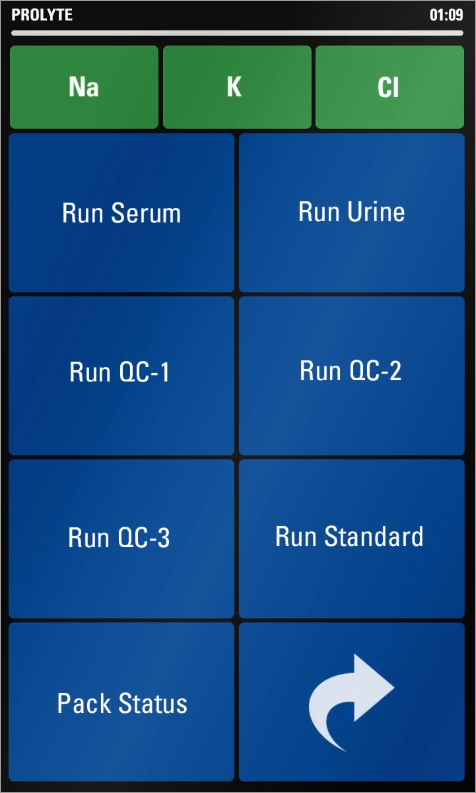

User Friendly Navigation | ||||||
![]() | ![]() | ![]() | ![]() | |||

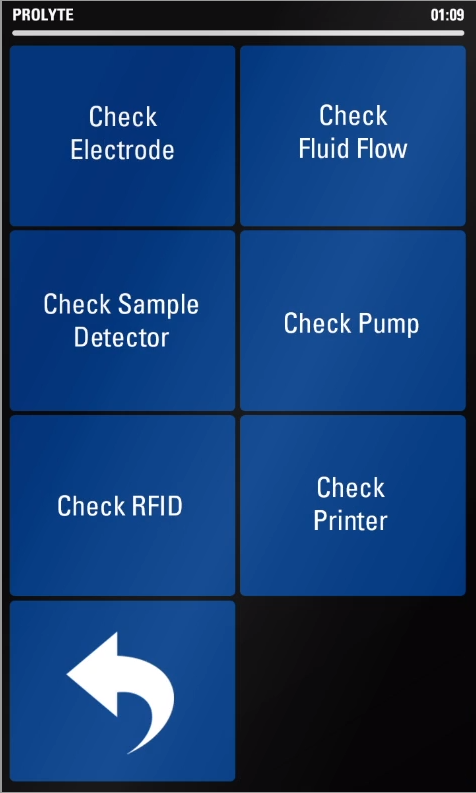

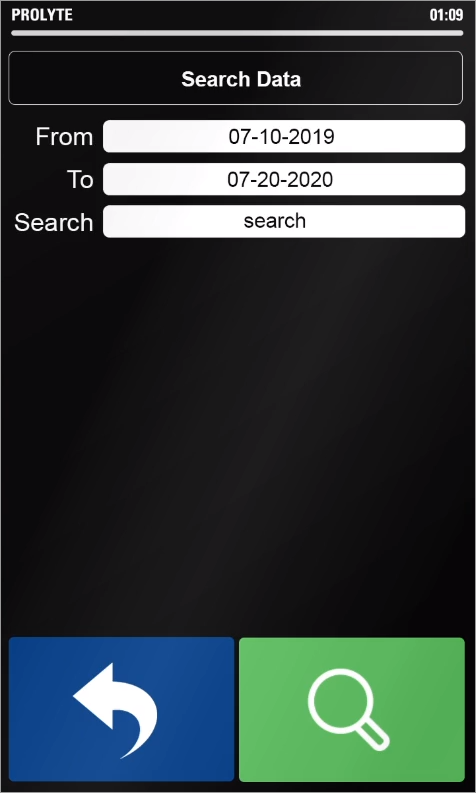

Easy Access to Data/Results | One Touch Calibration | Simple Search Function | Onscreen System Diagnostics | |||
Parameters and Specifications |
Parameters | Range | Reproductibility* | Resolution | |||
---|---|---|---|---|---|---|
Serum Na+ | 45-205 mmol/L | CV ≤ 1% (120-160 mol/L) | 0.01 mmol/L | |||
Serum K+ | 1.5-15 mmol/L | CV ≤ 1.5% (2.5-6 mmol/L) | 0.01 mmol/L | |||
Serum CL- | 45-205 mmol/L | CV ≤ 1% (85-130 mmol/L) | 0.01 mmol/L | |||
Serum Li+ | 0.15-5.00 mmol/L | SD ≤ 0.03 mmol/L (0.4-1.3 mmol/L) | 0.001 mmol/L | |||
Urine** Na+ | 30-1020 mmol/L | CV ≤ 5% (100-250 mmol/L) | 0.01 mmol/L | |||
Urine** K+ | 20-505 mmol/L*** | CV ≤ 5% (10-60 mmol/L) | 0.01 mmol/L | |||
Urine** CL- | 25-505 mmol/L | CV ≤ 5% (100-250 mmol/L) | 0.01 mmol/L | |||
*Typical Within Run (n=30) Blood, Serum, Plasma | ||||||
**Calcium and Lithium are not typically measured in urine samples | ||||||
***(60-120) requires additional dilution |
Power | Size & Weight | Ambient Conditions |
100-240V ~ 50/60 Hz | 9.5” (24cm) W x 16.5” (42cm) | Room temperature: |
(self adjusting) | 14 lbs or 6 kgs | 15-32°C/60-90°F |
1.6 A max, 50 Watts max | Humidity <85% | |
