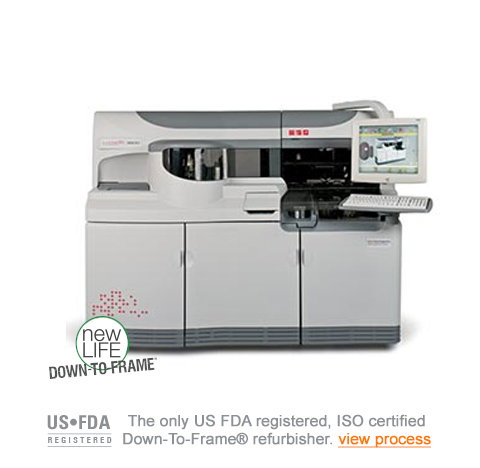

Ortho Vitros 3600 Immunology Analyzer
Item# 0-JJ-VITROS3600
The Ortho Clinical Vitros 3600 Immunology Analyzer, provided by Ortho Clinical Diagnostics
Related Products
Service Options
Consumables
Quality Controls
Service Parts
Package Size: EA
Upgrading or Adding Equipment to your lab?
Upgrading or Adding Equipment to your lab?
Save up to 70% with refurbished equipment from Abbott, Alfa Wasserman, Beckman, Biomerieux, Biotechnia, Hitachi, Horiba ABX, IL, J&J, Radiometer, Randox, Roche, Siemens, Stago, Sysmex, Thermo and Tosoh.
Diamond is the only USA FDA registered, ISO Certified and Down-To-Frame® refurbisher of Chemistry, Immunology, Hematology, Caogulation and Blood Gas equipment. Inquire today for pricing and Details.
Every analyzer undergoes a systemized, rigorous and unique Down-To-Frame® Refurbishment process to rebuild each analyzer to its original specification and intended use.
Disassembly & Decommission
- System decommissioned from laboratory and decontaminated
- Preliminary inspection of functionality
- System disassembled Down-To-Frame®
Aesthetic Restoration
- All outer covers, chassis and internal surfaces stripped, sand blasted and prepared for painting
- All prepared surfaces primed and painted with 3 part compound, color matched automotive quality paint
- All original logos and signage are replaced in original appearance
Refurbishment & Reassembly
- All mechanical, pneumatic, electronic assemblies disassembled, cleaned, restored, verified and reassembled, replaced where needed
- Disposable components replaced with new components
- New components include: tubing, fittings, syringes, seals, check valves, probes, reagent lines, waste assemblies and similar items
- System completely reassembled into its original condition in accordance to protocol and established specifications
Diagnostics & Troubleshooting
- Assembly Functions & System errors assessed, troubleshooting and repair conducted
- Full system diagnostic testing conducted
- System successfully calibrated with certified calibrator materials to ensure proper functionality
Performance Validation
- Rigorous Multi-Level Quality Control testing conducted on established parameters using certified control material
- Specific parameter testing available upon request
- System checked for power stability, software revisions and other upgrades
Final Packing
- Required peripherals for operation refurbished or provided new as needed
- System properly flushed, drained, protected and prepared for storage
- System professionally crated with heat-treated and non-coniferous wood for international transit
Diamond Diagnostics presents the refurbished Vitros 3600, an Immunology analyzer available in a floor model configuration, manufactured by Ortho Clinical. With the capacity to perform up to 189 tests per hour and a load-up capacity of 80 samples, this analyzer is designed for efficient and accurate analysis of various biological samples, including serum, plasma, and other bodily fluids. Equipped with advanced technology, the Vitros 3600 delivers comprehensive insights into immunological parameters, including cytokines, antibodies, antigens, and immune cell populations. With up to 31 cooled reagents onboard, it ensures optimal stability and performance for sensitive immunological assays. Its precision and reliability make it an indispensable tool in healthcare settings, providing valuable information for diagnosing and managing a wide range of medical conditions, from autoimmune disorders to infectious diseases. Whether in hospital laboratories, clinics, or research facilities, the Vitros 3600 plays a crucial role in patient care by facilitating timely and accurate diagnostic results. By furnishing healthcare professionals with actionable data, it enables informed decision-making and personalized treatment strategies, ultimately contributing to improved patient outcomes and overall wellness. From routine screenings to specialized diagnostics, the Vitros 3600 stands as a trusted ally in the pursuit of better healthcare, offering consistent performance and dependable results in every analysis.
Assays
35 Total Assays Tested
**********(******), ************(***), ************(***), ***************(***), *********(******), *************(***), **********(******), ********(*****), ***************(******), ***************(****), *********(****), *********(******), **************(***), ************(****), **********(*****), *************(***), ******(***), *******(*****), ***********(****), **************(***), *************(****), *************(***), ***********(****), ***********(***), ************(***), *************(****), *************(*****), **************(****), **********(***), ***************(*****), *******(*****), **************(******), ************(******), ********(****), ******(*****)
Specifications
| Manufacturer: | Ortho-Clinical |
| Series: | Vitros |
| CLIA Complexity: | Moderate |
| Sample Types: | Plasma, Urine, Whole Blood, Serum |
| Number of Assays: | 36 |
| Maximum Throughput: | 189 tests/hour |
| Sample Size Min: | 10 μL |
| Sample Input Type: | Sample Cups Sample Tubes |
| Configuration: | Floor Model |
| Height: | 164 cm (65 in) |
| Width: | 212 cm (83 in) |
| Depth: | 85 cm (33 in) |
| Weight: | 717 kg (1577 lb) |
| Power Supply: | 110V or 220V |
| Point Of Care: | No |
| Other Features: | MicroWell, Intellicheck, and MicroSensor Technology. Sample Capacity: 80 samples in Universal Sample Trays, 10 samples in dedicated STAT lane. Plumbing: No water or drain required; selfcontained onboard waste management eliminates special requirements for off-board plumbing. |
All units sold by Diamond Diagnostics or units qualified by Diamond Diagnostics are eligible for Field Service coverage. Service plans are the best way to maximize your instrument investment and avoid the high costs associated with instrument failure. Our plans are designed to support optimum instrument performance, ensure reproducible results and minimize down-time. Our service plans provide a timely response from our dedicated engineers who are certified on an ongoing basis to ensure top-notch results, even in the most complex laboratory environments.
: Included
: Chargeable
: None
* Contact for more details
Preventive Maintenance
For the laboratory looking to manage manufacture recommended preventative maintenance (PM) schedules for instrumentation at a fixed cost. The PM Service Plan will increase the reliability and reduce the risk and costs of unplanned maintenance and equipment downtime. Our plans are scheduled and planned around your specific instrument and operational needs.
Depot Repair Per Diem
For the laboratory looking to maximize the life of their instrumentation while effectively managing repair costs. The Depot Repair is a per diem plan designed for any size instrument needing major repair, complete rebuild or recycling.
Annual Depot Repair
For the laboratory looking to maximize the life of their instrumentation while effectively managing repair costs. Annual Depot Repair is an annual based plan designed for small to mid-sized instruments needing maintenance or repairs and can be easily shipped by your local carrier to our Depot Service Facility in Holliston, MA.
Phone Support
For the laboratory employing qualified service professionals, the Virtual Plan may be a suitable choice to replace or supplement Field Services. The Virtual plan offers its customers support by email and telephone, within business hours with communication directly with Clinical Engineering staff specialized in the model of instrumentation that the laboratory is utilizing. The Virtual Plan is annual.
